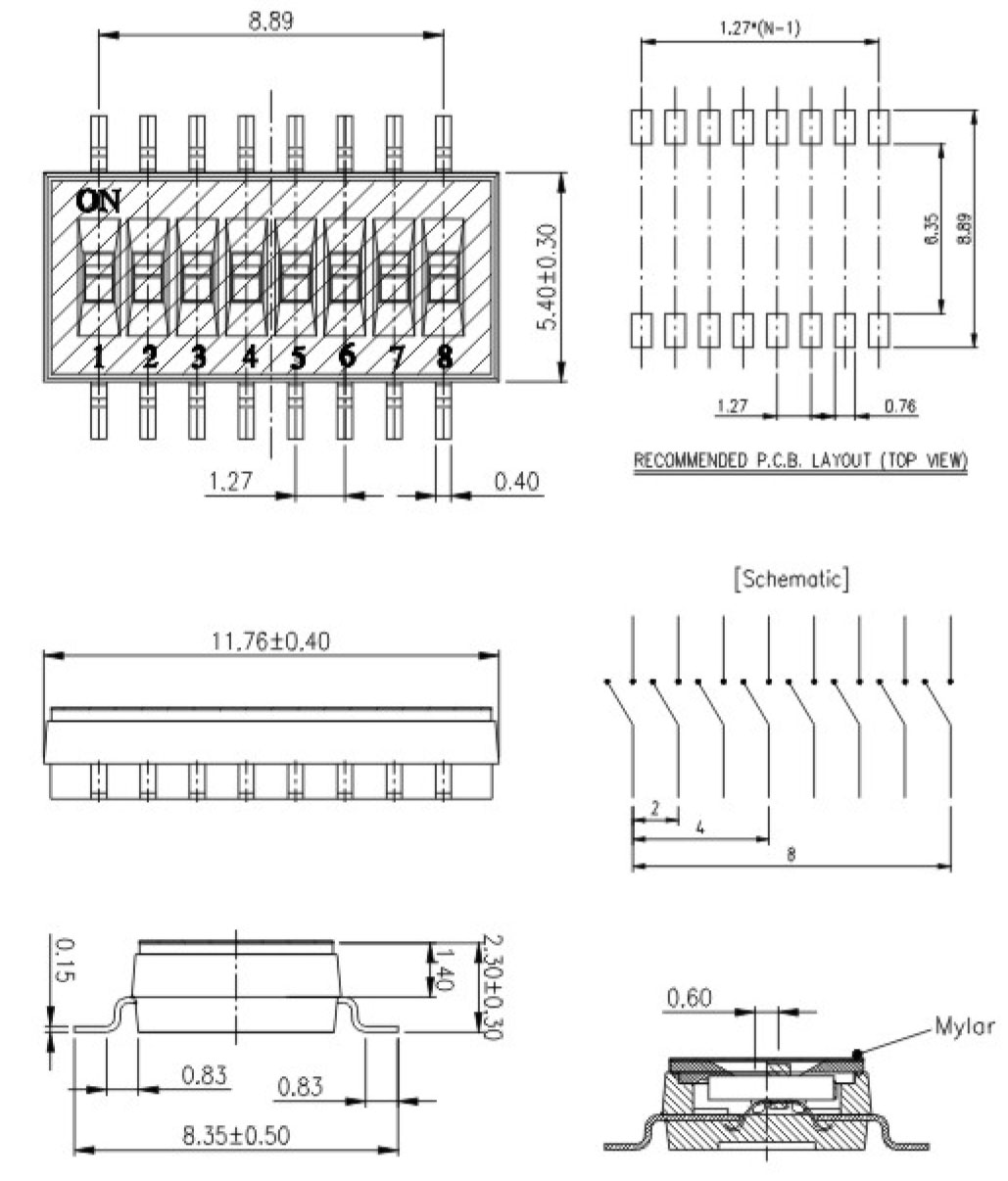

拨码开关RHP 系列

•  Non-Switching  ：100mA at 50VDC

Contact Resistance

•  Initial  ：50MΩ Max

•  After life  ：100MΩ Max

•  Insulation Resistance  :100MΩ Max,Minat100VDC

•  Dielectric Strength  ：300VAC for 60 seconds

•  Switch Capacitance  ：5pF Max at 1MHZ

•  Operation Temperature  : -30°C to +85°C

•  Storage Temperature : -40°C to +85°C

Mechanical Processing

•  Operation Force  ：500gf Max

•  Mechanical Life  : 1000 cycles Operations

•  Resistance to Soldering  : 270°C15C for 10 second

•  Packing: All DIP Switches Are Slipped In Standard lC
Tubes Or Reel Package With All Poles In The " OFF

RHP
